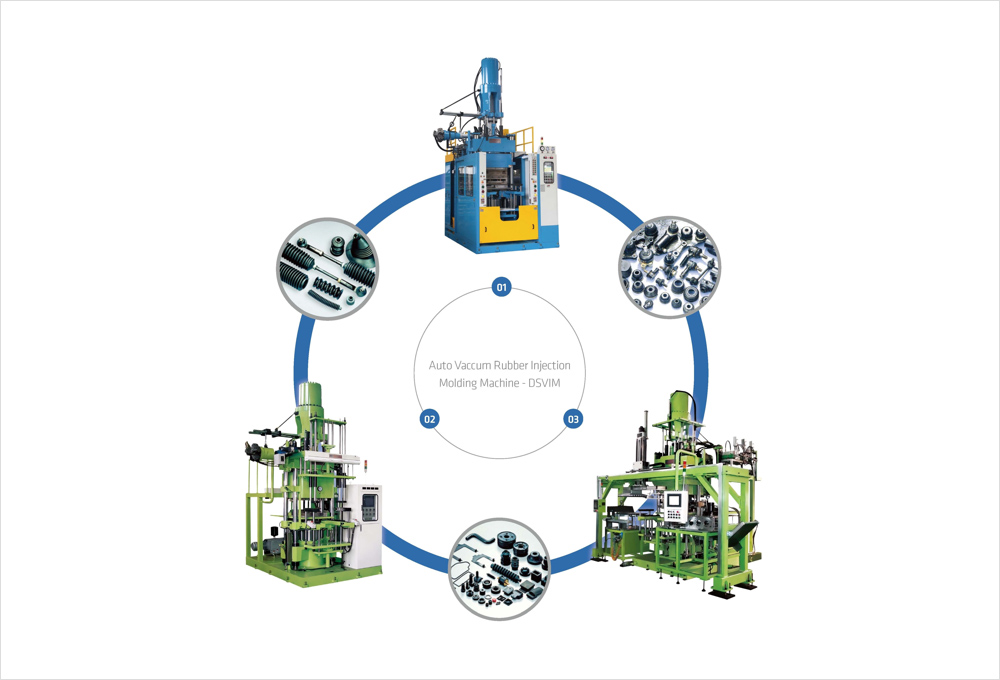

Auto Vacuum Rubber Injection Molding machine – DSVIM
Features
ㆍ Designed for production in the vacuum state, this system is suitable for high-quality and mass production.
ㆍ Equipped with a vacuum pump and a vacuum chamber, the system enables to manufacture high-quality products by having internal air and gas eliminated in the vacuum state.
ㆍ For silicon products, the system enables to easily feed raw materials with a hopper.
ㆍ When raw materials are fed into a form, the system sets the different velocities of emission pressures in the first to third stages, making it easy to feed raw materials
ㆍ The system enables to set pressures and velocities on the touch screen using the electronic proportion system and soften its movement by controlling the set values automatically.
ㆍ The system makes it easy to set pressures and time-related operating conditions, including form No. , using the touch screen and confirm its disorder using the errormessage function.
ㆍ The system makes it easy to fix a form with the one-touch method from the upper form method and to set a form by having a ball caster mounted on the lower heating plate
ㆍ Equipped with a communication card, the system enables to monitor all the items concerned in real time. (POP system applicable) (Option)
ㆍ The system enables to set temperatures on the touch screen by having a thermometer card on the optional P.L.C. mounted. (Option)
ㆍ The system enables to save 50% of the energy used by the existing motor even without any separate hydraulic fluid cooler by having the hybrid system applied. (Option)
ㆍ The system enables to manufacture insert products 24 hours by having a seal-off automation device mounted. (Options)
ㆍ Silicon-related products. Automobile-related products. Products easily subject to air malfunction
